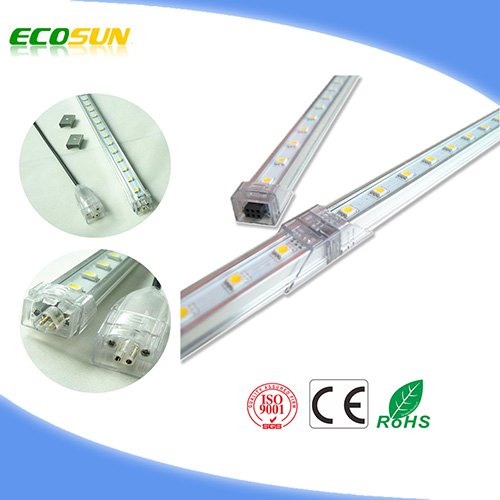

DC12V LED Light bar Light source:SMD5050 Easy connection and installation Lower power consumption Application:alkway lighting Architectural decorative lighting Stairway lighting & decorating DIY lights for home use Path and contour marking Decorative lights for holiday,event,show

1.Product Feature

Part  Number	Emitting color	Voltage	LED Qty/PCS	Wave-length	Power	Angle	Current
ES-LB24R-12V	Red	DC12V	24	620-625nm	5.76W	120°	0.48A
ES-LB24R-12V	Yellow	DC12V	24	590-595nm	5.76W	120°	0.48A
ES-LB24R-12V	Blue	DC12V	24	465-470nm	5.76W	120°	0.48A
ES-LB24R-12V	Green	DC12V	24	515-520nm	5.76W	120°	0.48A
ES-LB24R-12V	White	DC12V	24	2500-9000K	5.76W	120°	0.48A

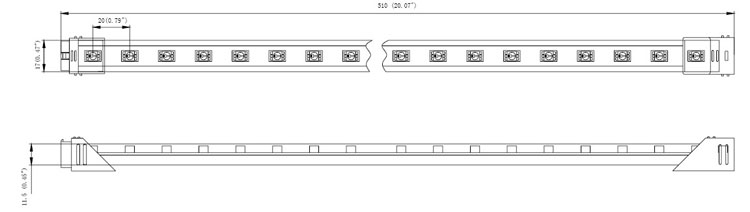

2.Dimension

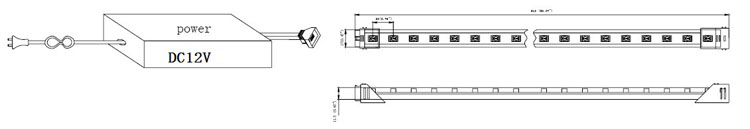

3.Connection

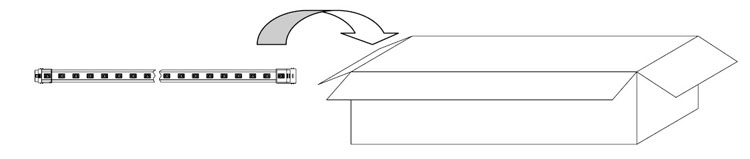

4.Packing

80pcs packed in one master carton,Carton Size:67X22X20cm. G.W:14KG

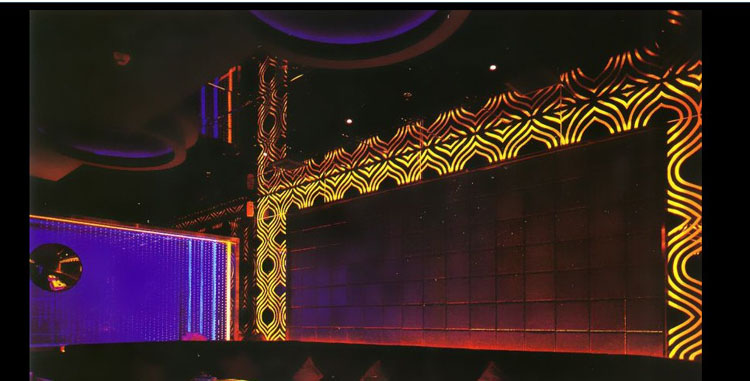

5.Application
