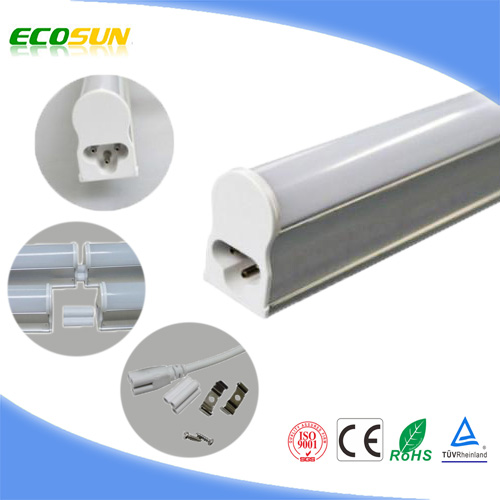

T5 LED Tube Model No: ES-T52/3/4/5FXWF Price Terms: EXW Payment Terms: T/T ,Western Union Package: laser print with gift box Minimum Order: 10pcs/model Delivery Time: 7~10 days for less than 50pcs, 15 days for Bulk order Brand Name: EcoSun Material: AL + Strengthen PC cover Lifespan: >50,000hrs Up to 70% Energy Saving Consumption High Brightness Easy Installation Extended Life Ballast Bypassed/ Removed

1.Product Features

Model No	ES-T52F07WF	ES-T53F09WF	ES-T54F15WF	ES-T55F15WF
Power Consumption	7W	9W	15W	18W
Luminous flux (Lm)	750-850 Lm	850-950LM	1450-1550LM	1750-1850LM
LED Qty(pcs)	84pcs	147pcs	238pcs	280 pcs
Size(mm)	600X15mm	900x15mm	1200x15mm	1500x15mm
LED Type	SMD 3528 (Taiwan Epistar)
Color Temperature (K)	2700 – 7000K
Color	Warm/Natural/Cool White
Beam angle (degree)	>120degree
CRI	>75
Input voltage	DC24V
Frequency range (Hz)	50 - 60Hz
Working environment	indoor
Material of body	Aluminum alloy frame and PC cover
IP rating	IP20
Operating temperature	-20~65 degrees Celsius
Net weight	300g
Dimmable	Optional
Life span	50,000hours
Warranty	3years
