Non-waterproof SMD5050 Strip,30LEDS/M,DC12V/7.2W Part NO:ESF5050S-30W Light source:SMD5050,single LED Lumen:15-17LM PCB size:500mm(L)X10mm(W)X2mm(H) Operating Voltage: 　DC12V Emitting color :red, green, blue,yellow, warm white(2500-4000K), pure white（4000-6500K），cold white（7000-9000K） Viewing angle : 120 degrees 3M adhensive tape in backside, every 3 leds cuttable. Electrostatic Discharge : >1500 V Operating Temperature : -25 ~ +60 °C Storage Temperature : -40 ~ +80 °C Lifetime:50000hrs

1.Product Features



Part  Number	Emitting color	Voltage	LED Qty/M	Wave-length	Power	Angle	Current
ESF5050S-30R	Red	DC12V	30	620-625nm	7.2W	120°	0.6A
ESF5050S-30Y	Yellow	DC12V	30	590-595nm	7.2W	120°	0.6A
ESF5050S-30B	Blue	DC12V	30	465-470nm	7.2W	120°	0.6A
ESF5050S-30G	Green	DC12V	30	515-520nm	7.2W	120°	0.6A
ESF5050S-30W	Warm White	DC12V	30	2500-3500K	7.2W	120°	0.6A
ESF5050S-30P	Pure White	DC12V	30	4000-6500K	7.2W	120°	0.6A
ESF5050S-30C	Cold White	DC12V	30	Above 7000K	7.2W	120°	0.6A
ESF5050S-30RGB	RGB	DC12V	30	/	7.2W	120°	0.6A

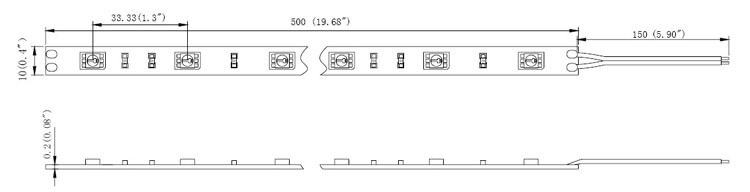

2. Dimension and circuit Drawing

3.Connect method

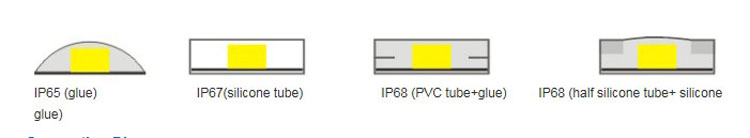

4.Several Waterproof kinds for your choice

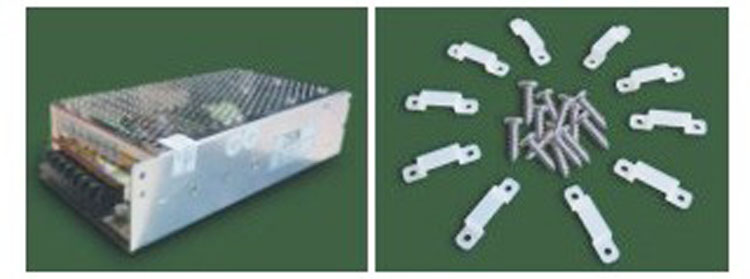

5.Strip spare parts

6.Packing

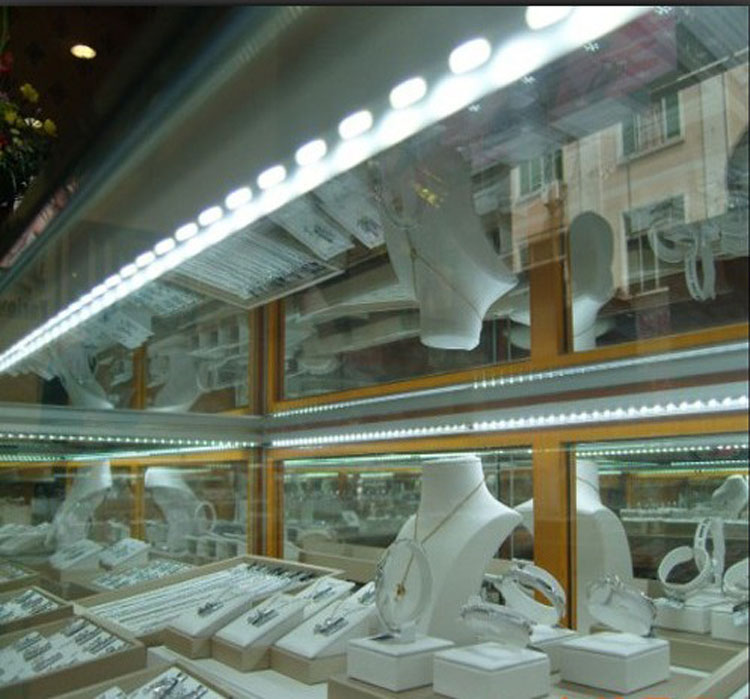

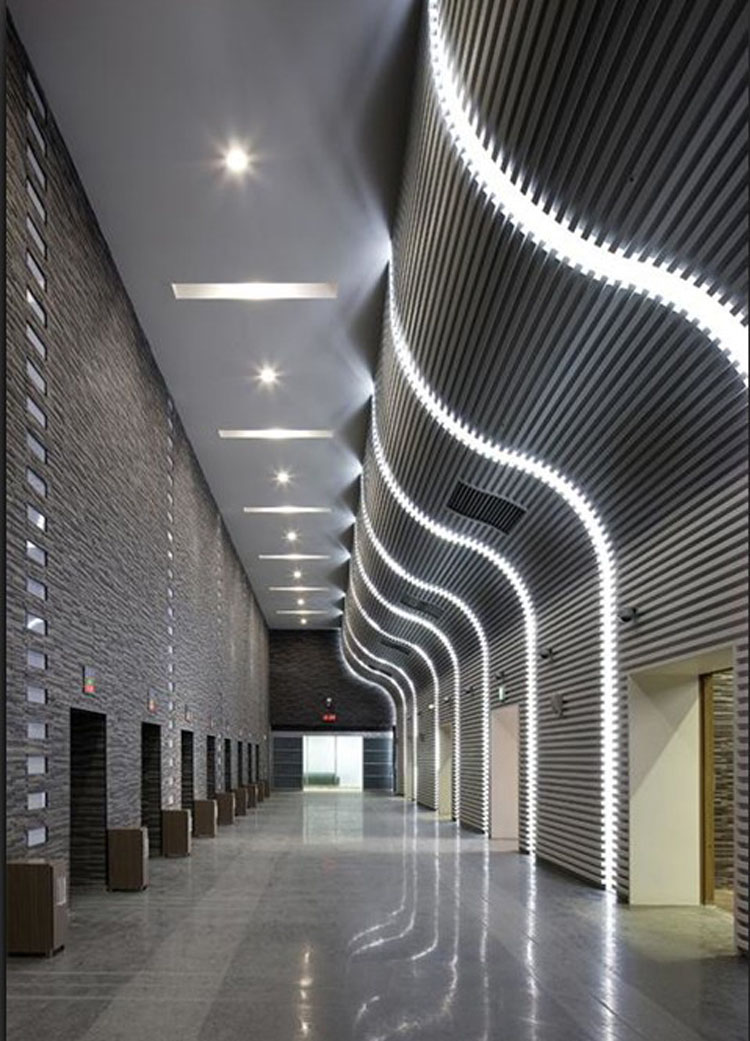

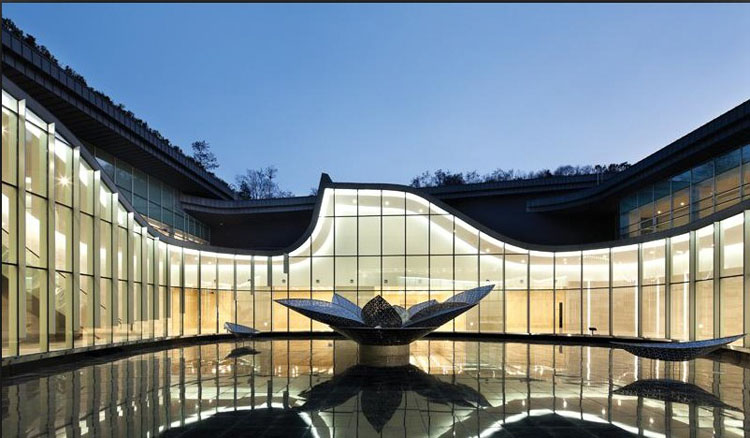

7.Applications
