LED Downlight with Built in mounted Brand Name: EcoSun Material: Plastic + Strengthen PC cover Lifespan: >50,000hrs Up to 70% Energy Saving Consumption High Brightness Easy Installation Extended Life instead of traditional bulb directly

1.Product Information

Part NO	ES-DL12W	ES-DL15W	ES-DL20W	ES-DL30W
Power(W)	10W/12W	13W/15W	18W/20W	25W/30W
Size(MM)	Φ140X48MM	Φ160X48MM	Φ190X58MM	Φ230X58MM
Cutout(MM)	120MM	145MM	165MM	200MM
Work Voltage(V)	AC85-265V	AC85-265V	AC85-265V	AC85-265V
Light Efficiency	85LM/W	85LM/W	85LM/W	85LM/W
Color temperature	2700-7000K	2700-7000K	2700-7000K	2700-7000K
Remark:Dimmable Downlight available

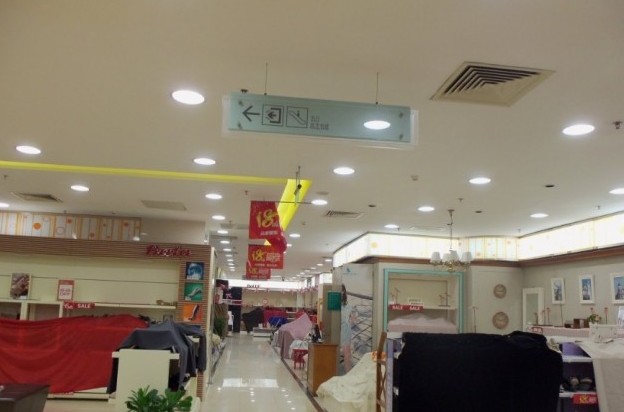

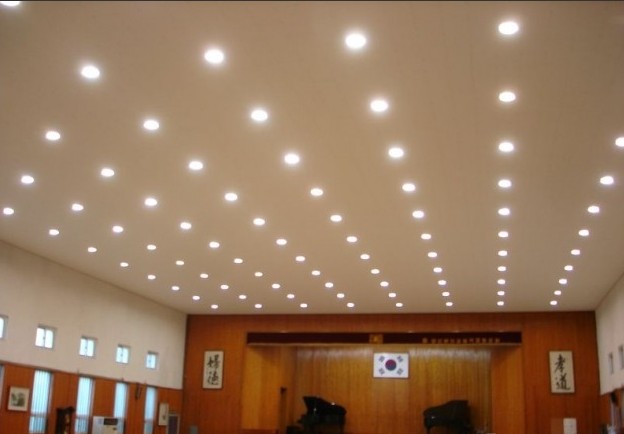

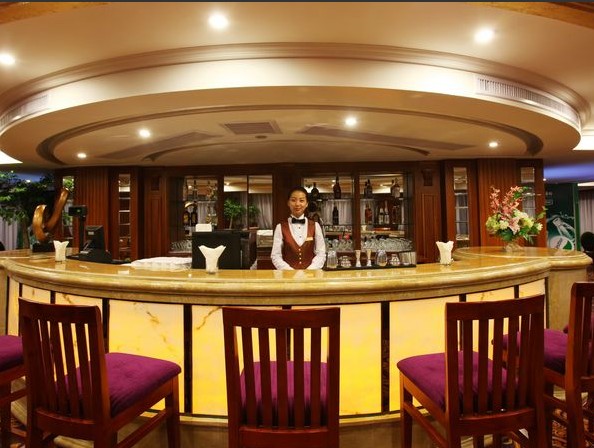

2.Applications
