2G11 LED Plug-In Tube
1.Wattage: 8W/12W/15W/18W/22W
2.Led Qty: 120/180/220/270/330PCS
3.Luminous efficiency: 95 lm/w
4.Certification: CE, PSE, FCC, SAA, RoHS
5.Work temperature:-40~65°C
6.Color: Based on your requirement
7.LED Chip: Epistar, Cree,etc
8.Voltage:AC85~265V
9.Material: Aluiminum alloy, PC cover, aluminum PCB board, plastic fixture
Application:
01. Hotels
02. Conference / Meeting rooms
03. Factories & Offices
04. Commercial Complexes
05. Residential Lighing / Institution Buildings
|
2G11 LED Plug-In Tube
Model:ES-2G1108W/12W/15W/18W/22W
1.Product Features
|
Model No
|
ES-2G1108W
|
ES-2G1112W
|
ES-2G1115W
|
ES-2G1118W
|
ES-2G1122W
|
|
|
Power Consumption
|
8W
|
12W
|
15W
|
18W
|
22W
|
|
|
Luminous flux (Lm)
|
800-850 Lm
|
1150-1250LM
|
1450-1550LM
|
1750-1850LM
|
2150-2250LM
|
|
|
LED Qty(pcs)
|
120 pcs
|
180pcs
|
220pcs
|
270pcs
|
330 pcs
|
|
|
Size
|
227X38mm
|
322X38mm
|
417X38mm
|
542X38mm
|
542X38mm
|
|
|
LED Type
|
SMD 3014 (TaiwanLumenMax)
|
|
|
Color Temperature (K)
|
2700 - 7000K
|
|
|
Color
|
Warm/Natural/Cool White
|
|
|
Beam angle (degree)
|
>120degree
|
|
|
CRI
|
>75
|
|
|
Input voltage
|
AC 100-240V
|
|
|
Frequency range (Hz)
|
50 - 60Hz
|
|
|
Working environment
|
indoor
|
|
|
Material of body
|
Aluminum alloy frame and PC cover
|
|
|
IP rating
|
IP20
|
|
|
Operating temperature
|
-20~65 degrees Celsius
|
|
|
Net weight
|
300g
|
|
|
Dimmable
|
O, ptional
|
|
|
Life span
|
50,000hours
|
|
|
Warranty
|
3years
|
|

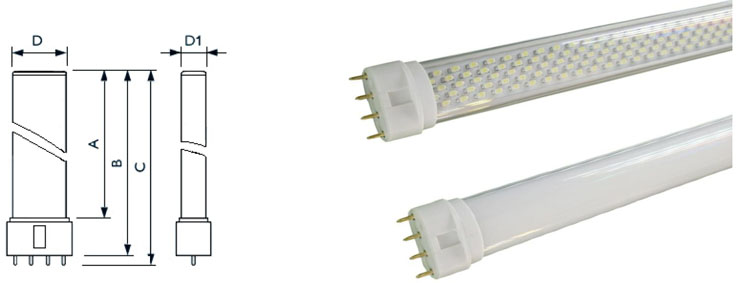

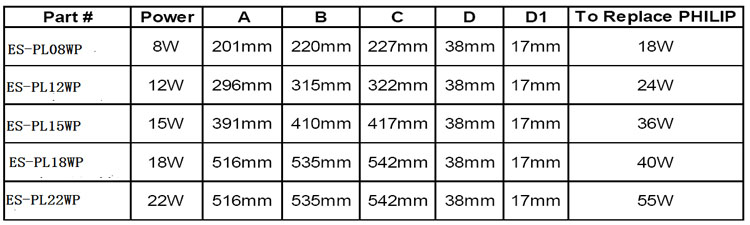

2.Dimension
|
