New MCOB Bulb Price Terms: EXW Payment Terms: T/T ,Western Union Package: laser print with gift box Minimum Order: 20pcs/model Delivery Time: 3-5 days for less than 50pcs, 10-15 days for Bulk order Brand Name: EcoSun Material: Plastic + Strengthen PC cover Lifespan: >50,000hrs Up to 70% Energy Saving Consumption High Brightness Easy Installation Extended Life instead of traditional bulb directly

LED Bulb Light

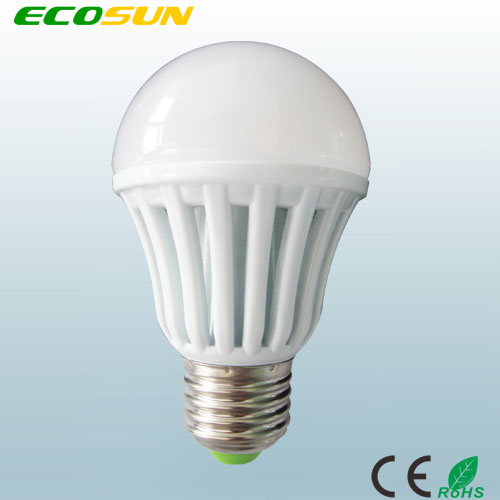

Super bright MCOB LED Bulb 4W/5.5W/7W/9W 120LM/W

MCOB encapsulated LEDs for better light efficiency

90-100LM/W,3000 hrs 0 light decay,can past 4000V high voltage test

1.Product Information



Model No	ES-BME27/E2604W	ES-BME27/E2605W	ES-BME27/E2607W	ES-BME27/E2609W
Power Consumption	4W	5.5W	7W	9W
Luminous flux (Lm)	360-400 Lm	450-550LM	630-700LM	810-880LM
LED Qty(pcs)	1pcs 4W MCOB	1pcs 5.5W MCOB	1pcs 7W MCOB	1pcs 9W MCOB
Size(mm)	57x98mm	57x98mm	57x98mm	61X105mm
Work Voltage	AC85V-265V 50-60HZ
Power Factor	≥80%
LED Chip brand	Epistar from TaiWan
Beam Angle	360°
Color temperature	Warm white(3000-3500K),Pure White(6000-6500K)
CRI	Warm White ≥70;Pure white&Cold White≥75
Working Temperature	-20-45℃
Surface Temperature	40-42℃
Environment humidity	＞90%
Lamp base	E27/E26/E14/B22
Material	Plastic body + PC shell ( Frosted PC shell)
Life Time	＞50000hrs under regular condition use
Certificate	CE ROHS
Warranty	3 Years

2.Dimension:

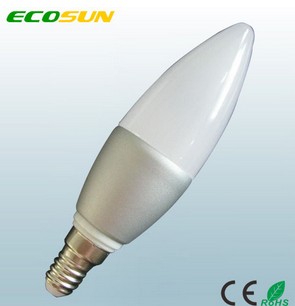

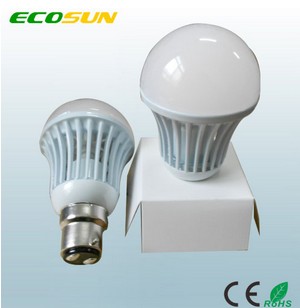

3.E14 lamp base candle bulb and B22 lamp base bulb

4.Advantage

1. Unique technique:To use MCOB(multi-chip on board) enscapsulate,Stability function,Area source lighting.
2. High light efficiency:Light efficiency can be up to 100LM/W
3. Stability Function: o use MCOB enscapsulate and Boss primer technique,Guarantee the fast heat dissipation,Ensure the lifespan of the Bulb.
4. High-pot test:Withstand high voltage up to 4500V
5. With intellectual property rights
6. Low luminous decay: 0 Light decay for first 3000hours, less than 4% for first 6000hours, less than 6% for first 10000hours
7. Certifications: CE,ROHS

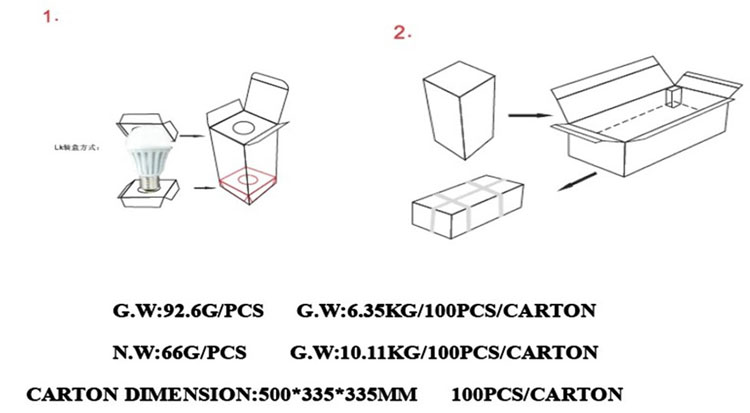

5:Package

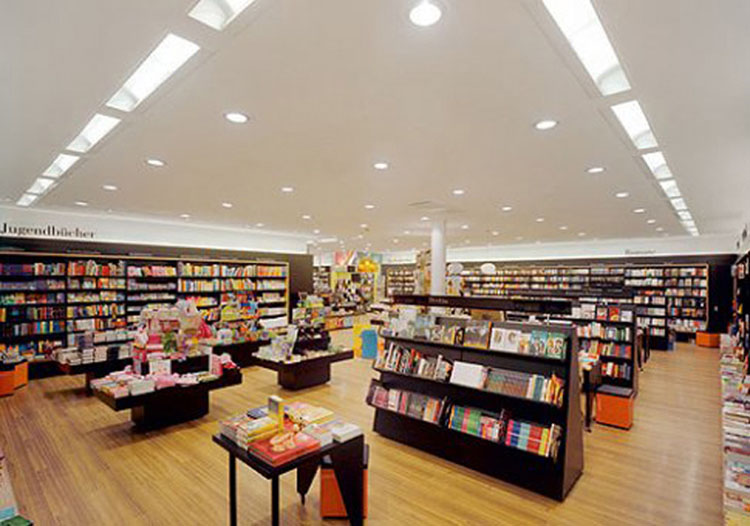

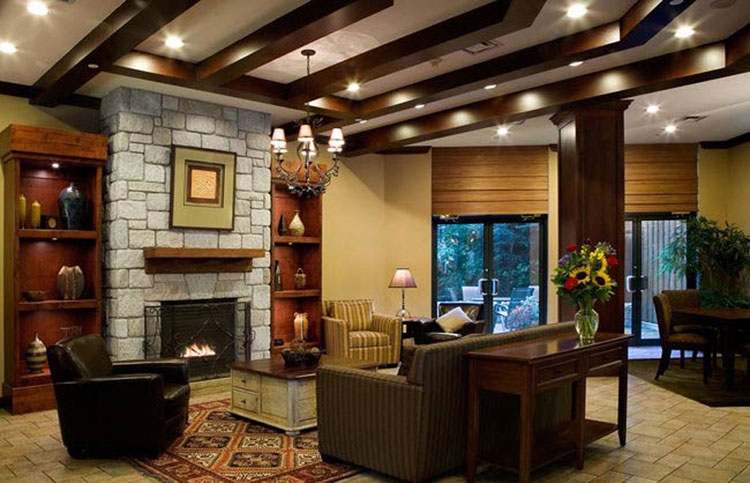

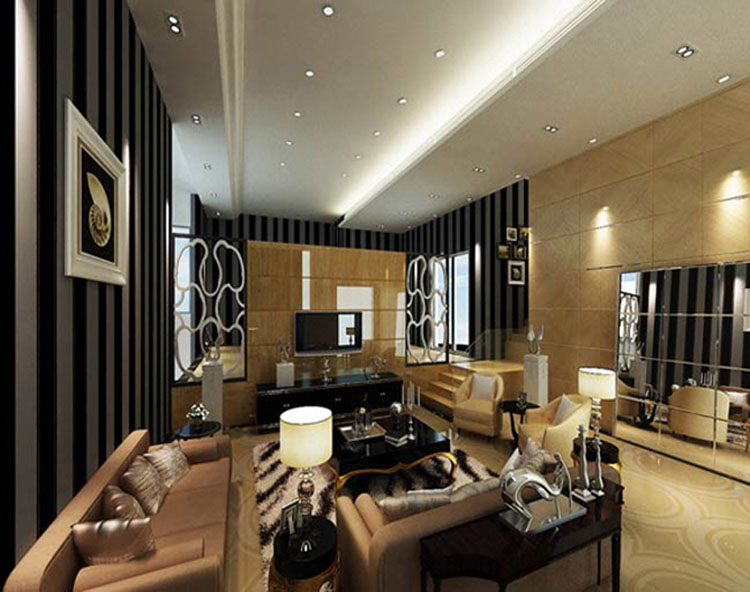

6:Applications
