Power:200W Input Volt:AC100-240V Output Volt:DC12V Output current:16.5A

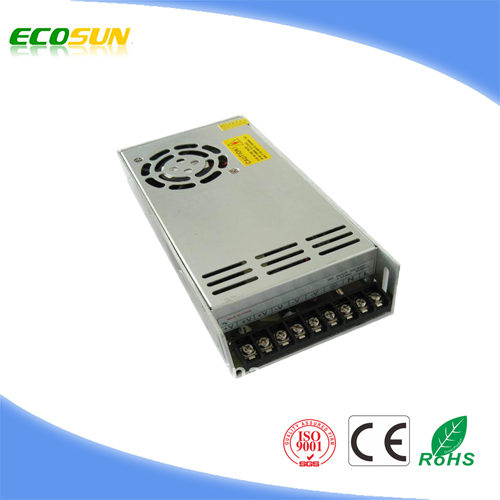

DC12V/200W Non-waterproof driver     Model: ES-DR200W-NW

Product Features

1.AC100-240V wide voltage input, Can supply different countries use.

2.With short circuit protection, overload protection, over-current protection function, use more safety.

3.100% full load testing and stable performance.

4.Insulation performance is good, resistance to electric high strength.

5.Anti-interference good intensity, reliable performance is high.

6.Switch power performance dc Ripple small, high efficiency, energy saving.

7.Low cost,high reliability.

8.The products have passed international safety and regulatory requirements.、

Product performance：

Rated input：100-240VAC 50/60Hz Max：90-264VAC 47/63Hz

Rated output：12VDC±5%

Rated current：16.5A

Rated power：200W

Inrush current :Cold start 20A at 100V AC,60A at 240V AC.

DC adjustment range:3-4V rated output voltage.

Short circuit protection: removed type disconnected, quick recovery.

Over current protection：130%-150%

Over voltage protection：115%--135%

Operation temperature：-10-50℃（±10℃）

Relative humidity：20%-90%RH

Storage temperature：-40-80℃（±10℃）

Insulation resistance：100M ohms

Withstand voltage：I/P-O/P:1.5KV AC I/P-FG:1.5KV AC

Connection:9.5mm pitch terminal block
