LED High Bay Lamp 100W Model:ES-HB100W Volte:AC85-265V Certificate:CE ROHS Efficiency of Power supply >85%, Power factor >0.96 Isolated, low voltage and constant current drive, It is more safe, stable and reliable to use Adopt high quality Aluminum shell with special thermal convection dissipation structure,longer lifespan Lighting performance is soft, proporational. No glare,no flicker High quality LED chips source with longer lifespan and low lighting decay

LED High bay Lamp 100W Model NO:ES-HB100W

1.Product Features

Input Voltage		AC85V～265V 50Hz～60Hz
Total Harmonic Distortion		≤ 9%
Power Factor		>0.95
Power Efficiency		>83%
LED Working Voltage		DC30～36V
Light source		1 PCS Bridgelux COB
LED Consumption		100W
Driver		Meanwell
LED Luminous Efficiency		100-110LM/W
Led Initial Flux	WW	10000 Lm
	PW	11000 Lm
	CW	10500 Lm
Lamp’s Efficiency		>80%
Average Ililuminance	(Height) 6M	68.8 Lux
	(Height)8M	42.6Lux
	(Height)10M	23.6 Lux
Illuminance Area	(Height)6M	Φ10MRound Beam
	(Height)8M	Φ16MRound Beam
	(Height)10M	Φ21MRound Beam
Illuminance Uniformity		>0.4
Color Temperature	WW	2700K～3500K
	PW	4000K～4500K
	CW	6000K～6500K
Color Rendering Index	WW	CRI>70Ra
	PW,CW	CRI>75Ra
Light Distribution		Symmetncal/Round Beam
Light Design		LED and Novel light
LED Junction Temperature		≤80℃
Working Temperature		-40℃～+55℃
Storage Temperature		-25℃～+65℃(25℃Optimum)
IP Grade		IP65
Working Life-span		>50,000H
Power Line		0.75m㎡
Connect wire	Brown	L
	Blue	N
	Yellow/Green	G
The color of the lamp shell		Black, Silver optional
Certificate		CE/RoHS

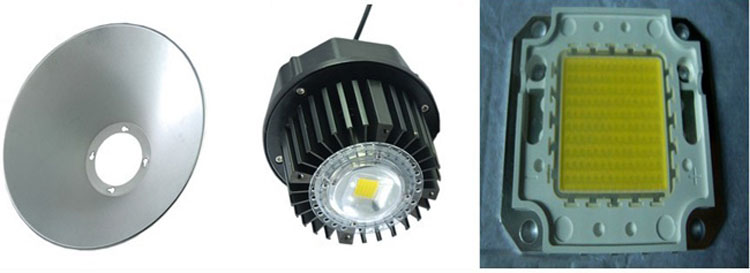

2.Lamp Structure

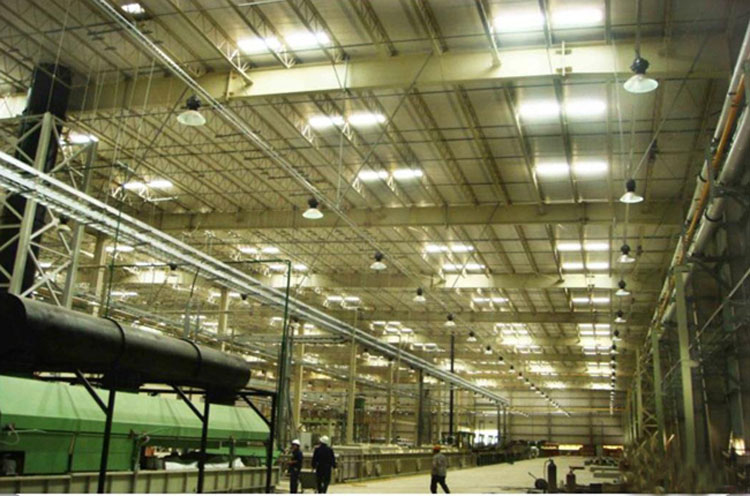

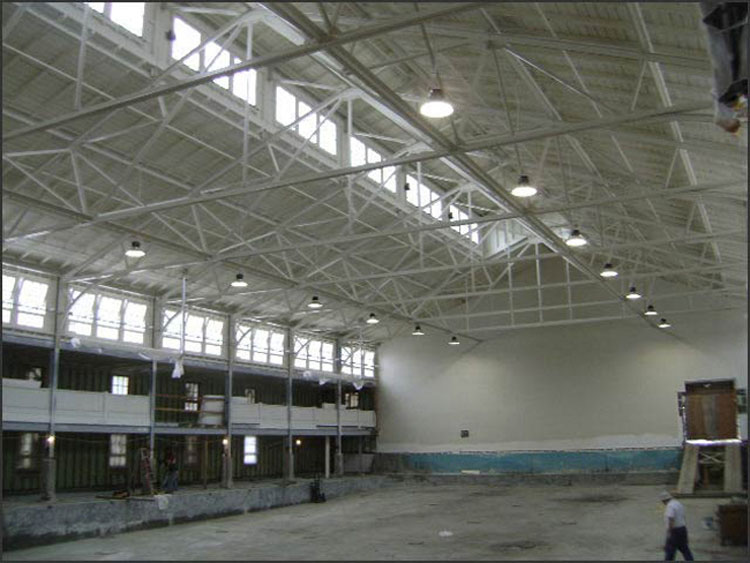

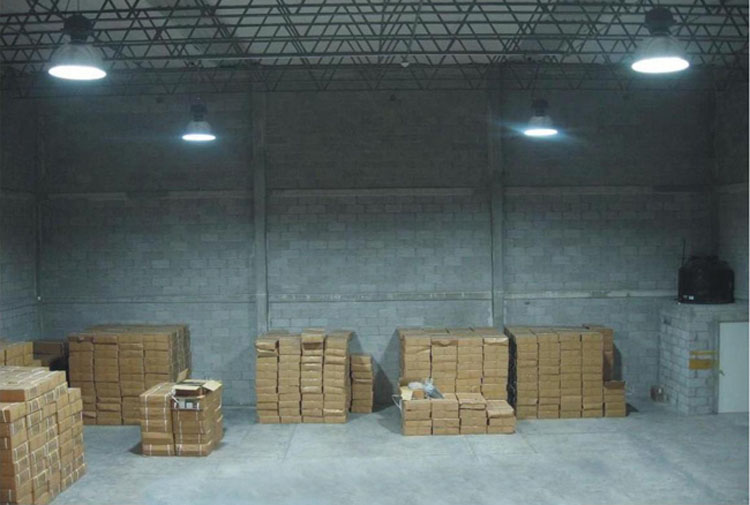

3.Applications
