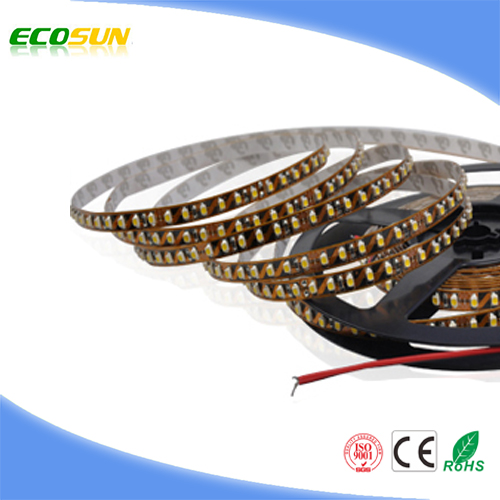

Non-waterproof SMD3528 Strip,120LEDS/M,DC12V/9.6W Part NO:ESF3528S-120W Light source:SMD3528,single LED Lumen:5-6LM PCB size:500mm(L)X8mm(W)X2mm(H) Operating Voltage: 　DC12V Emitting color :red, green, blue,yellow, warm white(2500-4000K), pure white（4000-6500K），cold white（7000-9000K） Viewing angle : 120 degrees 3M adhensive tape in backside, every 3 leds cuttable. Electrostatic Discharge : >1500 V Operating Temperature : -25 ~ +60 °C Storage Temperature : -40 ~ +80 °C Lifetime:50000hrs

1.Product Feature



Part  Number	Emitting color	Voltage	LED Qty/M	Wave-length	Power	Angle	Current
ESF3528S-120R	Red	DC12V	120	620-625nm	9.6W	120°	0.8A
ESF3528S-120Y	Yellow	DC12V	120	590-595nm	9.6W	120°	0.8A
ESF3528S-120B	Blue	DC12V	120	465-470nm	9.6W	120°	0.8A
ESF3528S-120G	Green	DC12V	120	515-520nm	9.6W	120°	0.8A
ESF3528S-120W	Warm White	DC12V	120	2500-3500K	9.6W	120°	0.8A
ESF3528S-120P	Pure White	DC12V	120	4000-6500K	9.6W	120°	0.8A
ESF3528S-120C	Cold White	DC12V	120	Above 7000K	9.6W	120°	0.8A

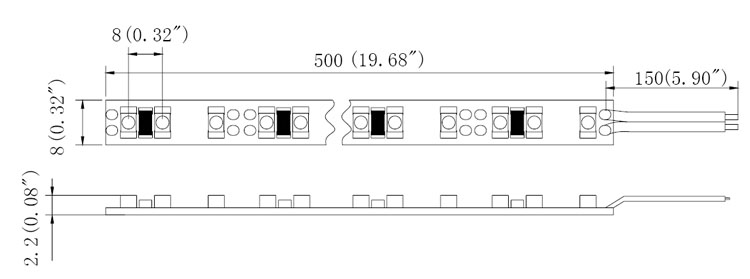

2.Dimension and circuit Drawing

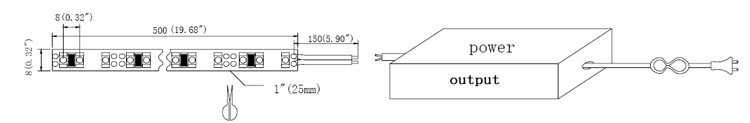

3.Connection method

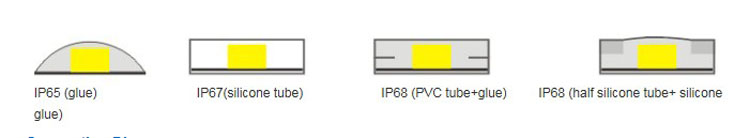

4.Several Waterproof kinds for your choice

5.Strip spare parts

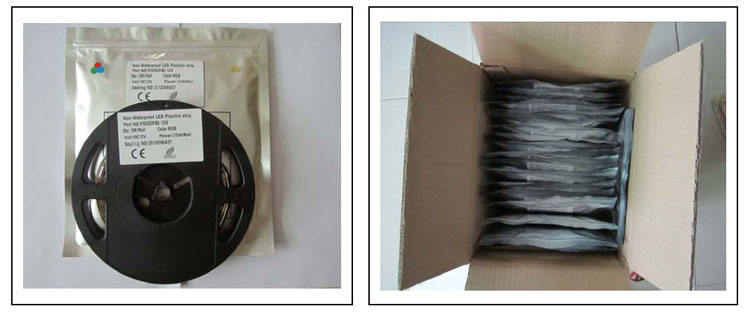

6.Packing

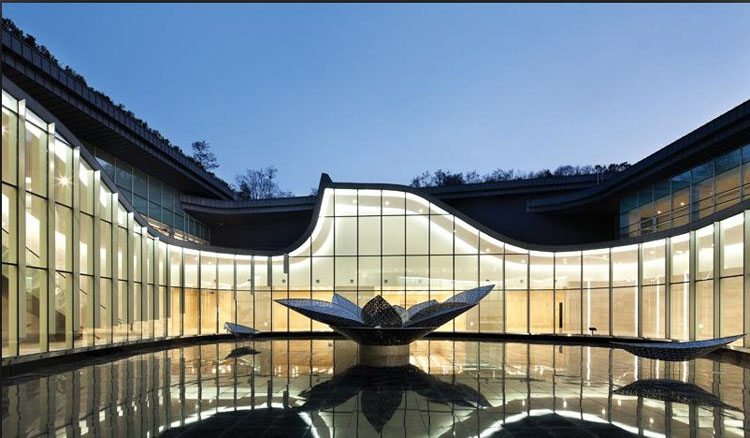

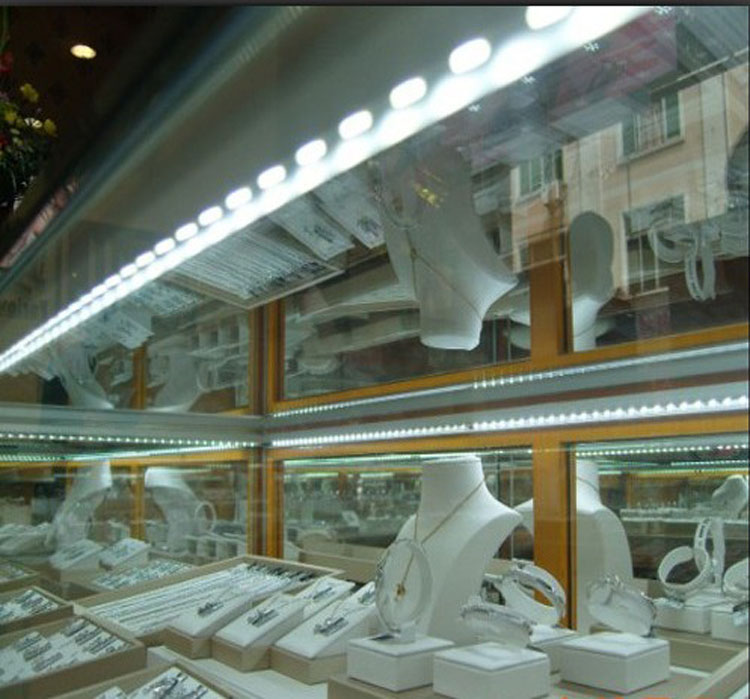

7.Applications
