ecosun

LED Portable Rechargeable Flood Lamp
1.Product Information

Part NO	ES-FLP10W01	ES-FLP10W02	ES-FLP20W	ES-FLP30W	ES-FLP50W
Power	10W	10W	20W	30W	50W
Charger	AC input:90V-265V  DC9V/1000mA	AC input:90V-265V  DC13.2V/1000mA	AC input:90V-265V  DC13.2V/1000mA	AC input:90V-265V  DC13.2V/1000mA	AC input:90V-265V  DC36V/1000mA
Li-ion Battery	18650   7.4V/2200mAH	18650   7.4V/4400mAH	18650   11.1V/4400mAH	18650   11.1V/6600mAH	18650   28.8V/4400mAH
Luminous Efficiency	70LM/W	70LM/W	70LM/W	70LM/W	70LM/W
Color Temperature	2700-7500K	2700-7500K	2700-7500K	2700-7500K	2700-7500K
Luminous Flux	650-700LM	650-700LM	1350-1450LM	2000-2100LM	3400-3500LM
Beam Angle	120°	120°	120°	120°	120°
Ambient Temperature	-20℃  -  40℃	-20℃  -  40℃	-20℃  -  40℃	-20℃  -  40℃	-20℃  -  40℃
Protection	Constant-currency             Over-Charging Protection	Constant-currency              Over-Charging Protection	Constant-currency              Over-Charging Protection	Constant-currency              Over-Charging Protection	Constant-currency              Over-Charging Protection
Working time	1-2 hrs	2-4hrs	2-4hrs	2-4hrs	2-4hrs
Charging Time	2-3hrs	3-4hrs	3-4hrs	3-4hrs	3-4hrs
Index Lamp	Charging&working index	Charging&working index	Charging&working index	Charging&working index	Charging&working index
IP Rate	IP65	IP65	IP65	IP65	IP65
Material	Aluminum-Alloy	Aluminum-Alloy	Aluminum-Alloy	Aluminum-Alloy	Aluminum-Alloy

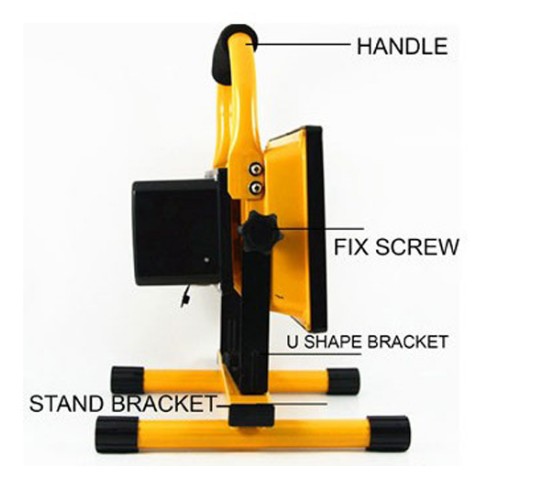

2.Lamp Structure

3.Applications
