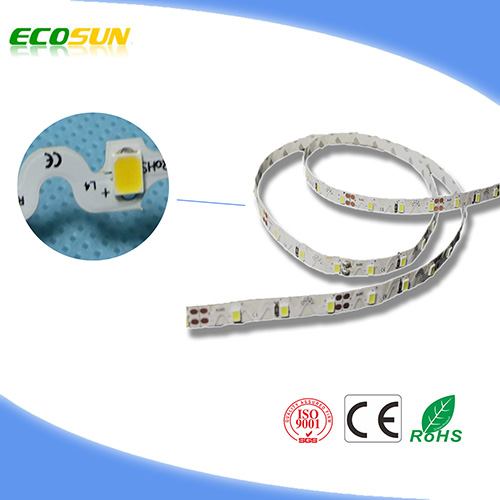

S shape SMD2835 LED Strip with S shape as picture,it is rotatable and turnable.widely used for billboard back lighting 60LEDS/M,DC12V/12W Part NO:ESF2835S-60W Light source:SMD2835,single LED Lumen:22-24LM PCB size:500mm(L)X6mm(W)X2mm(H) Operating Voltage: 　DC12V Emitting color :red, green, blue,yellow, warm white(2500-4000K), pure white（4000-6500K），cold white（7000-9000K） Viewing angle : 120 degrees 3M adhensive tape in backside, every 3 leds cuttable. Electrostatic Discharge : >1500 V Operating Temperature : -25 ~ +60 °C Storage Temperature : -40 ~ +80 °C Lifetime:50000hrs

S shape SMD2835 LED Strip

Features:

Part NO	Emiting color	Voltage	LED Qty/M	wave length	Power	Angle	Current
ES-F2835S-60R	Red	DC12V	60	620-625nm	12W	120	1A
ES-F2835S-60Y	Yellow	DC12V	60	590-595nm	12W	120	1A
ES-F2835S-60B	Blue	DC12V	60	465-470nm	12W	120	1A
ES-F2835S-60G	Green	DC12V	60	515-520nm	12W	120	1A
ES-F2835S-60W	Warm White	DC12V	60	2500-3500K	12W	120	1A
ES-F2835S-60P	Pure white	DC12V	60	4000-6500K	12W	120	1A
ES-F2835S-60C	Cold white	DC12V	60	above 7000K	12W	120	1A
