The COB LED strip features with 180° beam angle
and no-spot continuous linear lighting,
have soft and uniform lighting output,
It's flexibility and easy-to-cut
can be used to DIY as cabinet lighting,
canopy lighting, etc
Samples and specification are ready
upon your request. |

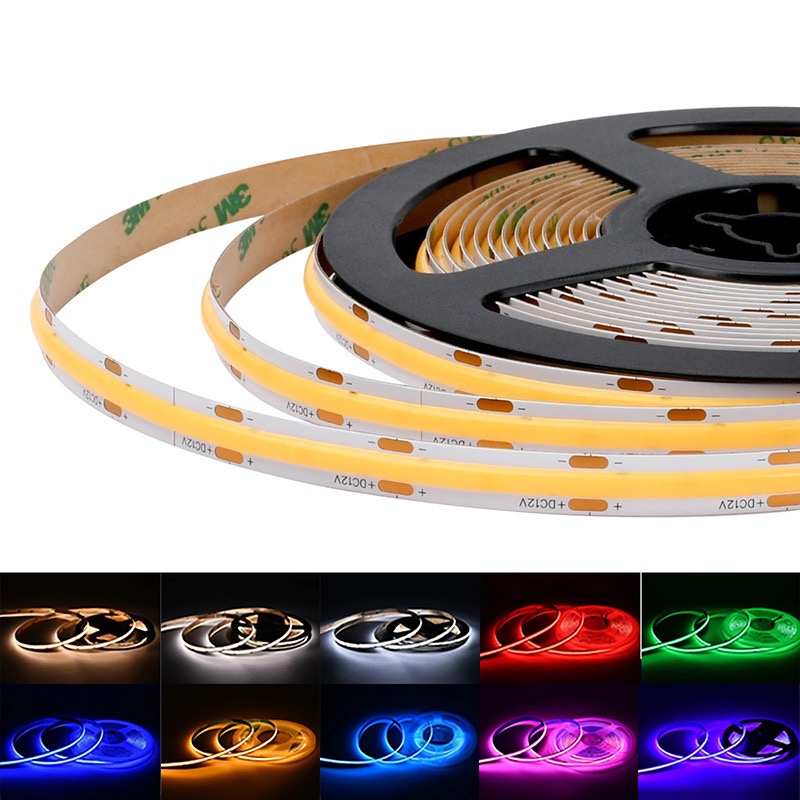

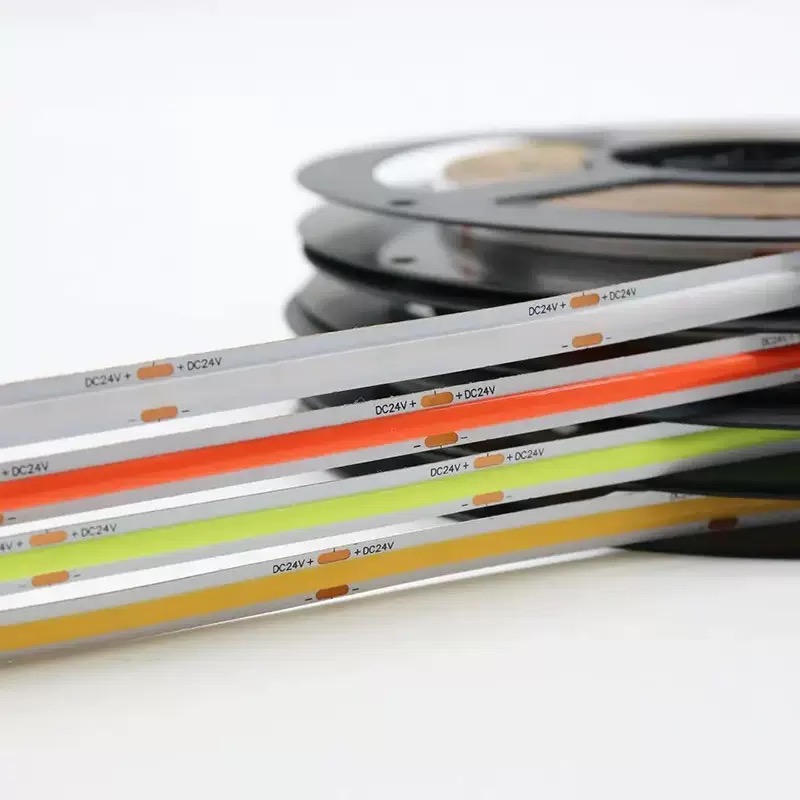

COB LED Flexible strip
Specifications:
|
Part NO
|
ESCXXXX-XX
|
|
PCB Width
|
3MM/4MM/5MM/8MM/10MM
|
|
Voltage
Input
|
DC5V/12V/24V
|
|
Wattage
|
12W/24W/30W/35W/60W/72W
etc
|
|
LED Type
|
COB
|
|
LED
Qty/Meter
|
320LED/480LED
etc
|
|
Beam Angle
|
180°
|
|
Lumen Efficiency
|
>100LM/W
|
|

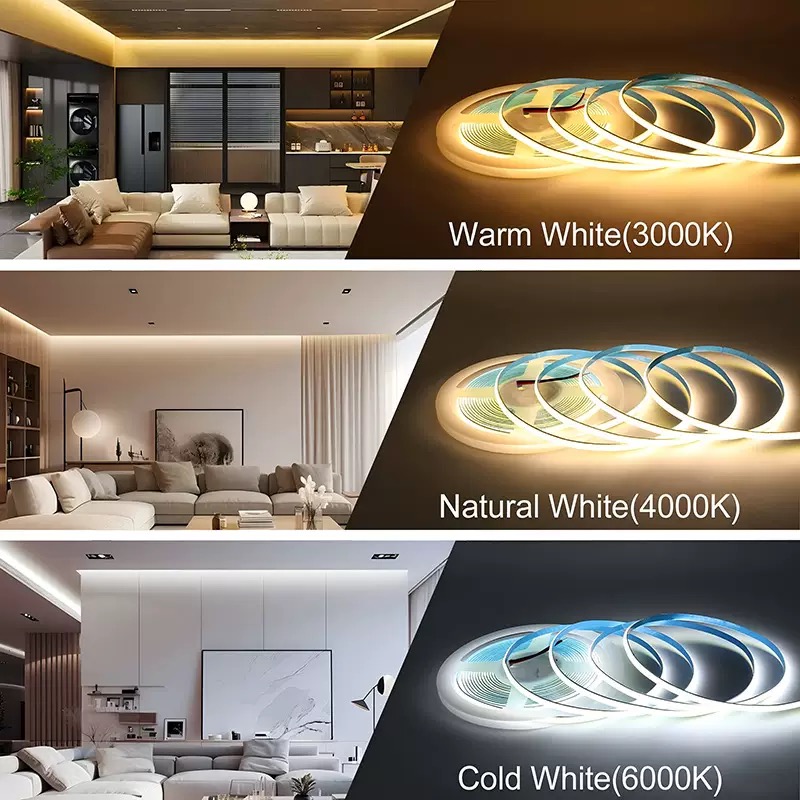

Color temperature
|
3000-8000K
|
|
CRI
|
>90
|
|
Standard Length
|
5Meter
|
|
IP Rating
|
IP20/ IP65/IP67/IP68 available on request
|
|

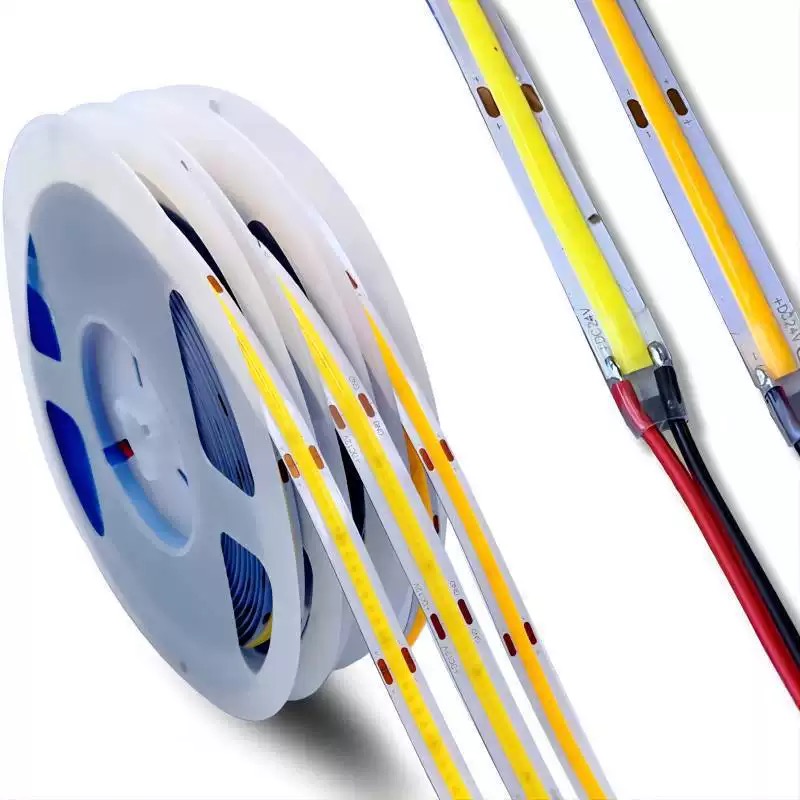

Cable Length
|
15cm red/black at one side
|
|
Package
|
5M Per Anti-static foil bag
|
|
Install
|
3M Adhensive Tape
|
|
OEM/ODM
|
Available (different size, wattage, color/cct,
cable etc…)
|
|
Operating
Temperature
|
-25°C~45°C
|
|
Storage Temperature
|
-30°C~60°C
|
|
Warranty
|
3 years
|
More details:

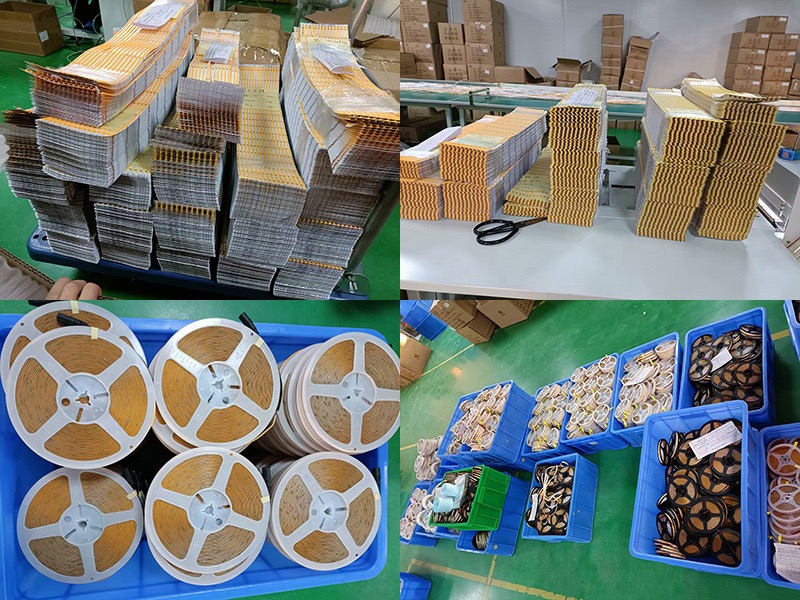

Package:

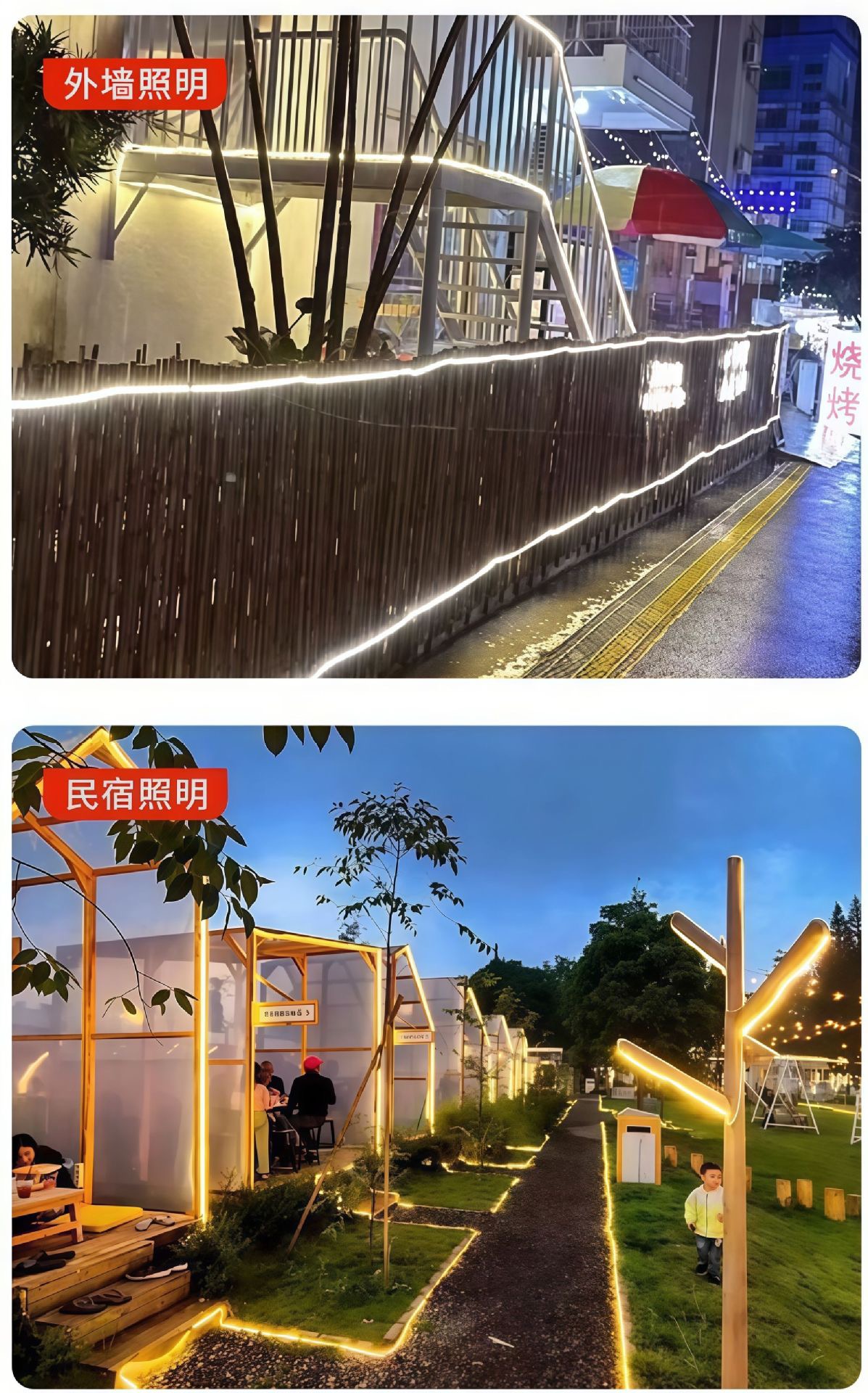

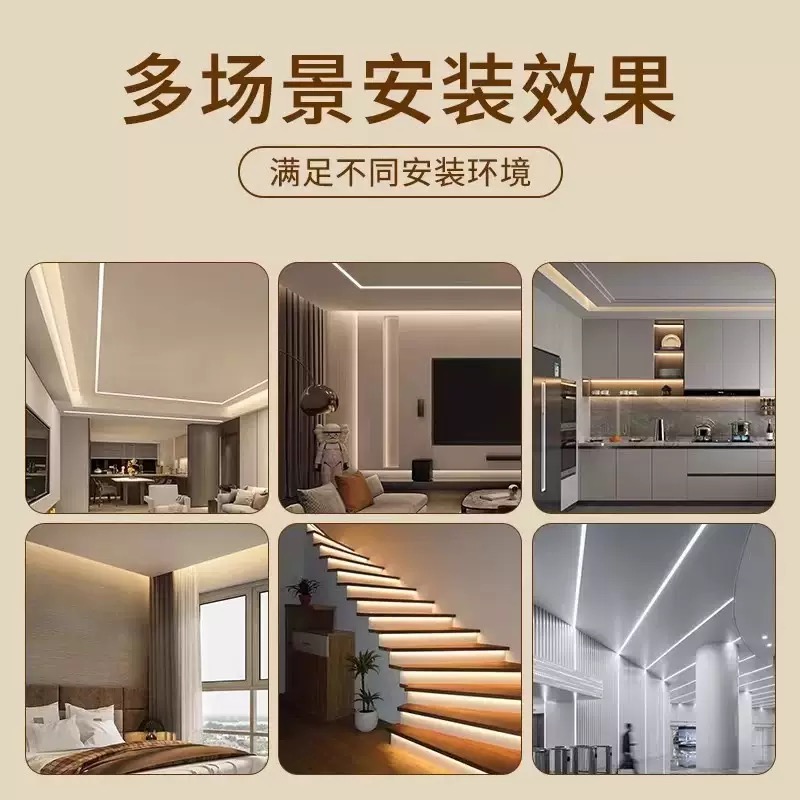

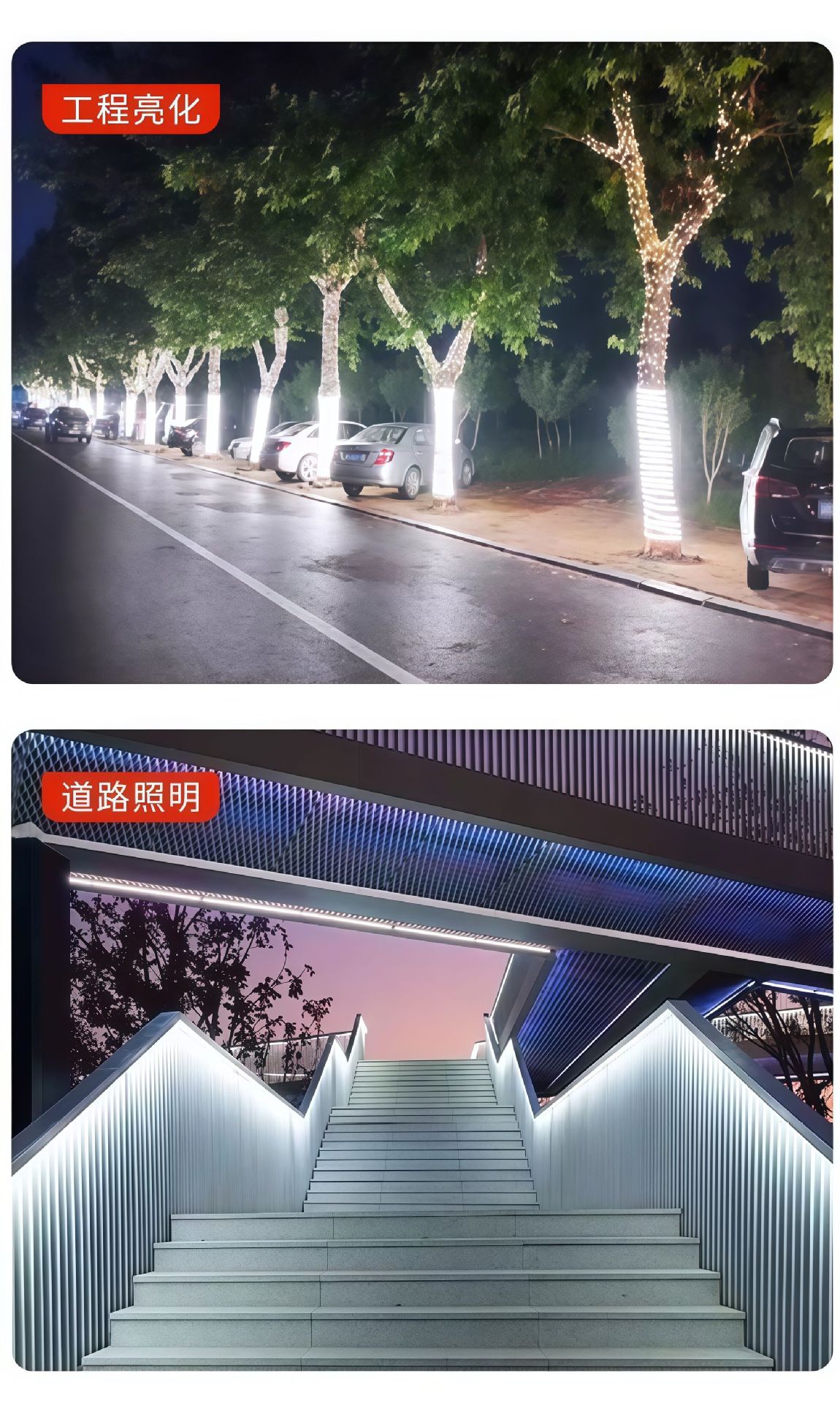

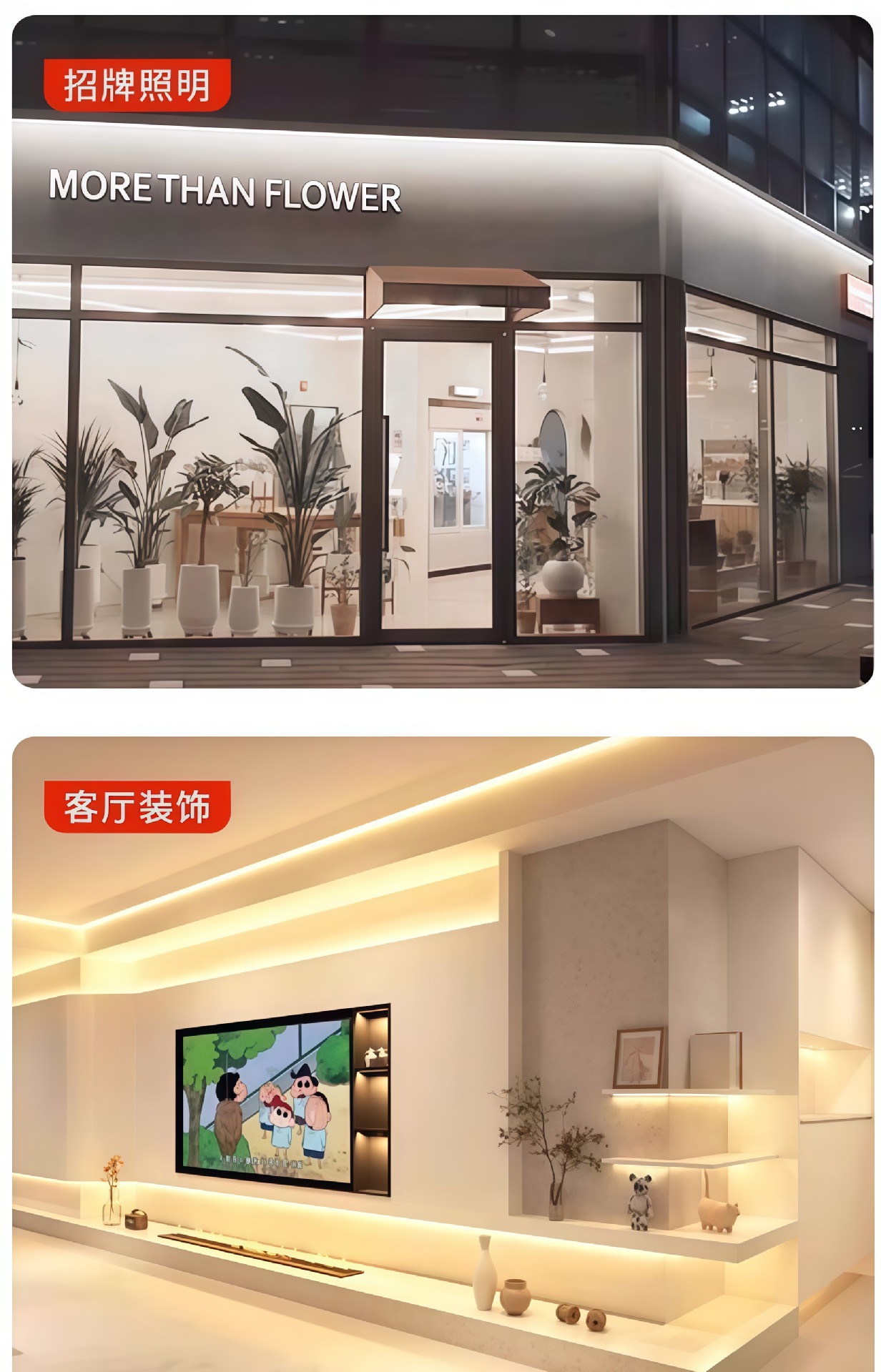

Applications:

|
