LED Corn lamp with G24 base 1.Wattage: 3W/5w 2.Led Qty: 50/100pcs 3.Length：125mm/145mm 4.Size: 125*40mm/145*40mm 5.Luminous efficiency: 85 lm/w 6.Certification: CE,RoHS 7.Work temperature:-40~65°C 8.Color: Based on your requirement 9.LED Chip: Epistar, Cree,etc 10.Voltage:AC85~265V 11.Material: Aluiminum alloy, PC cover, aluminum PCB board, plastic fixture

1.Product Features

Model No	ES-G24W03	ES-G24W05
Power Consumption	3W	5W
Luminous flux (Lm)	240-290LM	400-450LM
LED Qty(pcs)	50 pcs	100 pcs
Size	125X40mm	145X40mm
LED Type	SMD 3528 (Taiwan LumenMax)	SMD 3528 (Taiwan LumenMax)
Color Temperature (K)	2700 - 7000K	2700 - 7000K
Color	Warm/Natural/Cool White	Warm/Natural/Cool White
Beam angle (degree)	>120degree	>120degree
CRI	>75	>75
Input voltage	AC 100-240V	AC 100-240V
Frequency range (Hz)	50 - 60Hz	50 - 60Hz
Working environment	indoor	indoor
Material of body	Aluminum alloy frame and PC cover	Aluminum alloy frame and PC cover
IP rating	IP20	IP20
Operating temperature	-20~65 degrees Celsius	-20~65 degrees Celsius
Net weight	300g	300g
Dimmable	Optional	Optional
Life span	50,000hours	50,000hours
Warranty	3years	3years

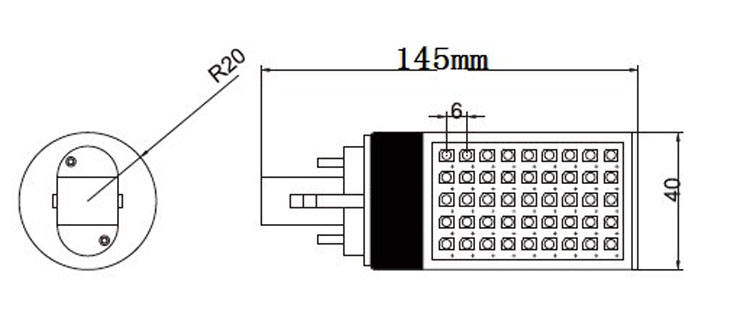

2.Dimension
