Amplifier for RGB Strip Input: R/G/B+ Output: common anode: R/G/B Voltage:DC5V/DC6V/DC12V/DC24V Size: 114*65*25mm Gross weight: 135g Output currentL4A(each channel)

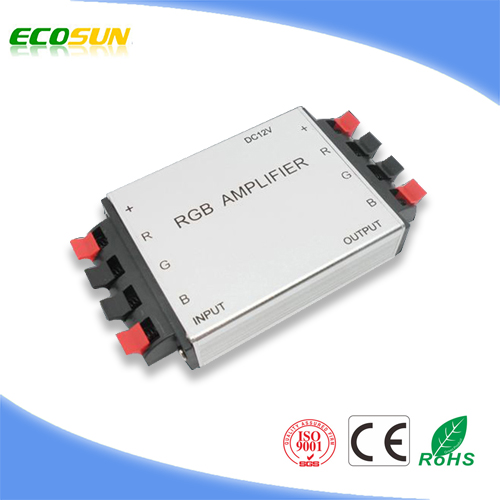

Amplifier for RGB Strip Model:ES-AMLF01

1. Product Features

Working temperature:	-20-60 ℃
Supply voltage:	DC5V, 6V ,12V, 24V<optional>
Connecting mode:	common anode R/G/B
External dimension:	L114ΧW65ΧH25 mm
Gross weight:	135g
Output current:	<4A(each channel)

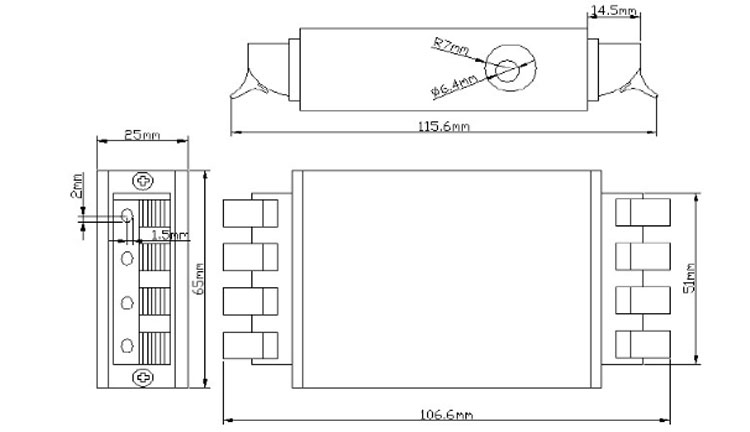

2.Dimension
