8key RF controller used for RGB Strip

8Key RF Controller Model:ES-CRF08

1.Technical Parameters

Working temperature:	-20-60 ℃
Supply voltage:	DC5V, 12V ,18V, 24V<optional>
Output:	3 channels
Connecting mode:	common anode
External dimension:	L121ΧW53ΧH25 mm
Packing size:	L150ΧW76ΧH51 mm
Net weight:	255g
Gross weight:	285g
Static power consumption:	<1W
Output current:	<4A(each channel)
Output power:	5V:<60W,  12V:<144W,  24V:<288W

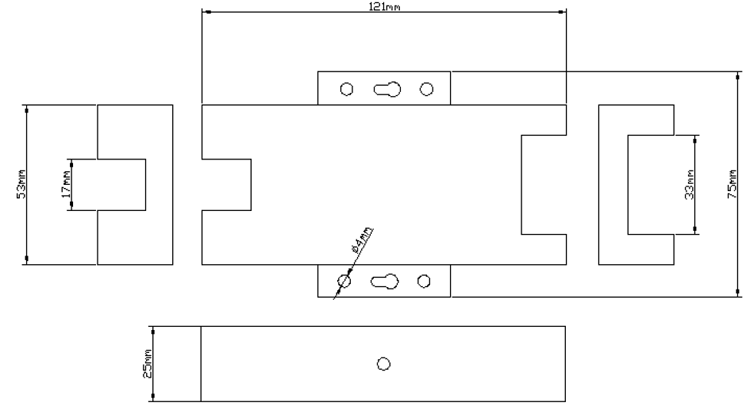

2.Dimension

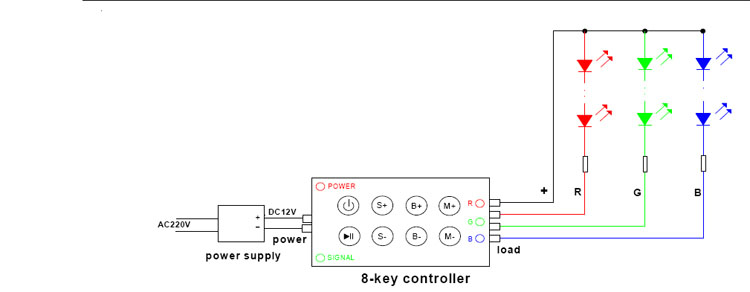

3.Connection
