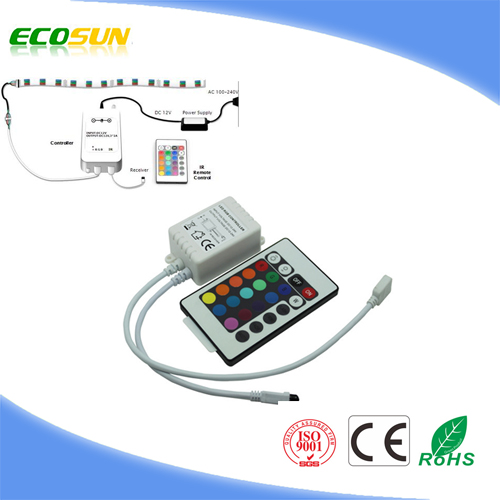

24Key IR Controller used for RGB Strip

24 Key IR Controller Model:ES-CIR24

1.Product Features

Working temperature:	-20-60 ℃
Supply voltage:	DC5V, 12V ,18V, 24V<optional>
Output:	3 channels
Connecting mode:	common anode
External dimension:	L50ΧW35ΧH22 mm
Packing size:	L105ΧW65ΧH40 mm
Net weight:	50g
Gross weight:	70g
Static power consumption:	<1W
Output current:	<2A(each channel)
Output power:	5V:<30W,  12V:<72W,  24V:<144W

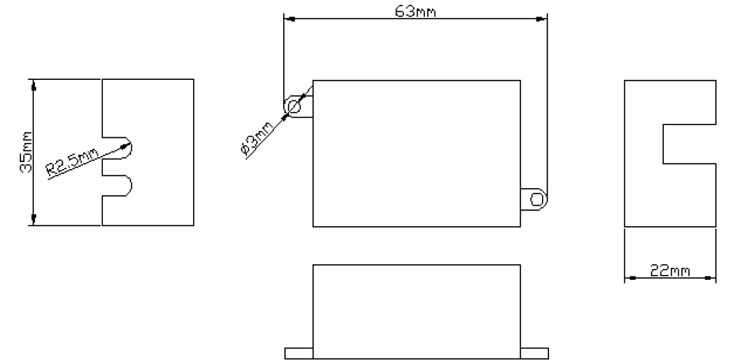

2.Dimension

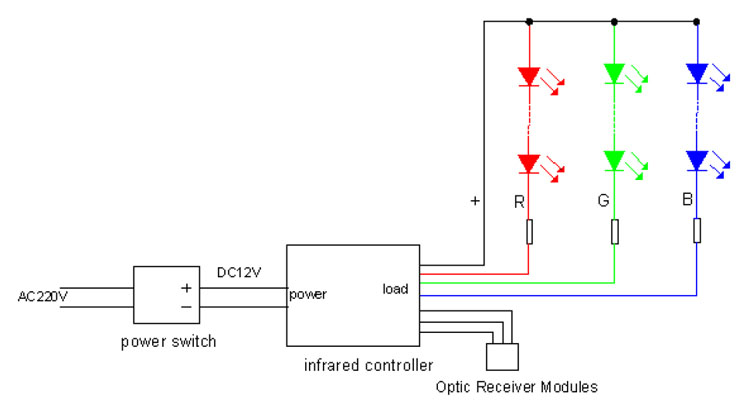

3.Connection
