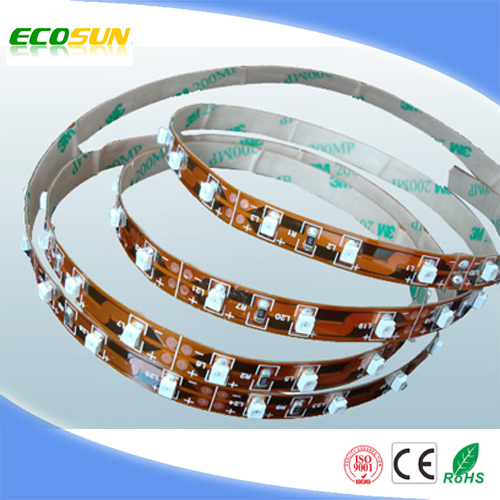

Non-waterporoof SMD3528 Strip,60LEDS/M,DC12V/4.8W Part NO:ESF3528S-60W Light source:SMD3528,single LED Lumen:5-6LM PCB size:500mm(L)X8mm(W)X2mm(H) Operating Voltage: 　DC12V Emitting color :red, green, blue,yellow, warm white(2500-4000K), pure white（4000-6500K），cold white（7000-9000K） Viewing angle : 120 degrees 3M adhensive tape in backside, every 3 leds cuttable. Electrostatic Discharge : >1500 V Operating Temperature : -25 ~ +60 °C Storage Temperature : -40 ~ +80 °C Lifetime:50000hrs

1.Product Features:

Part  Number	Emitting color	Voltage	LED Qty/M	Wave-length	Power	Angle	Current
ESF3528S-60R	Red	DC12V	60	620-625nm	4.8W	120°	0.4A
ESF3528S-60Y	Yellow	DC12V	60	590-595nm	4.8W	120°	0.4A
ESF3528S-60B	Blue	DC12V	60	465-470nm	4.8W	120°	0.4A
ESF3528S-60G	Green	DC12V	60	515-520nm	4.8W	120°	0.4A
ESF3528S-60W	Warm White	DC12V	60	2500-3500K	4.8W	120°	0.4A
ESF3528S-60P	Pure White	DC12V	60	4000-6500K	4.8W	120°	0.4A
ESF3528S-60C	Cold White	DC12V	60	Above 7000K	4.8W	120°	0.4A

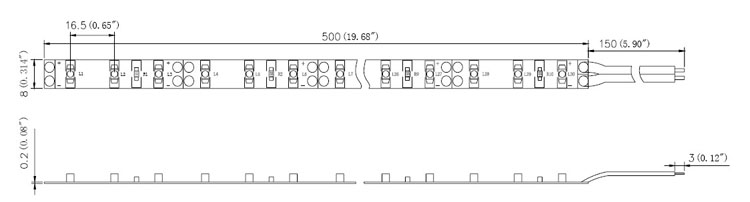

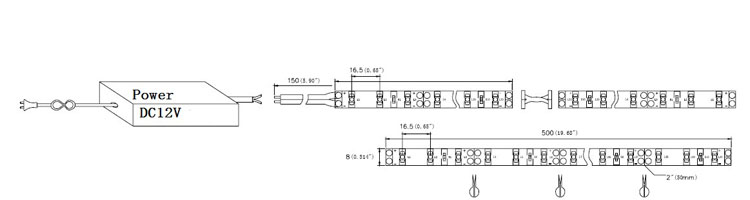

2.Dimension and circuit Drawing

3.Connection method:

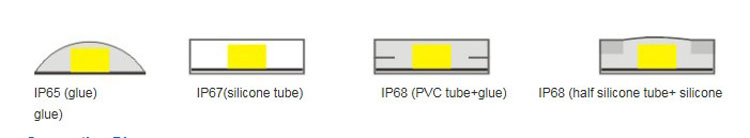

4.Several Waterproof kinds for your choice

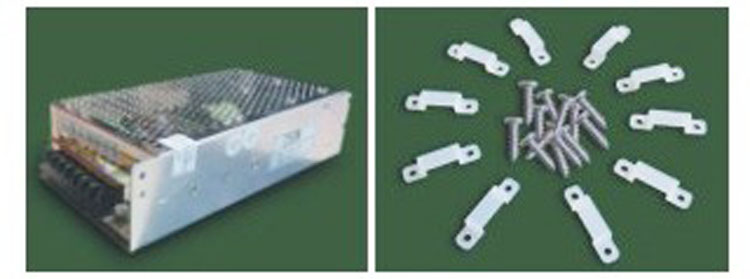

5.Strip spare parts

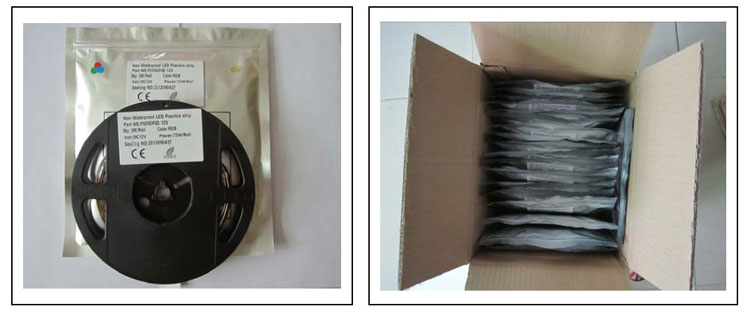

6.Packing:

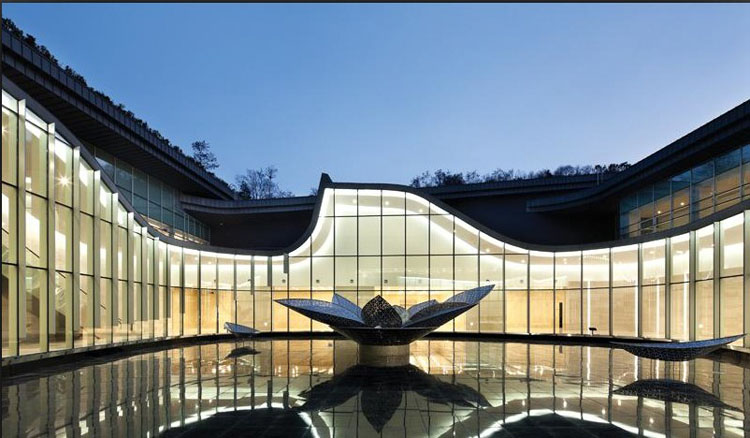

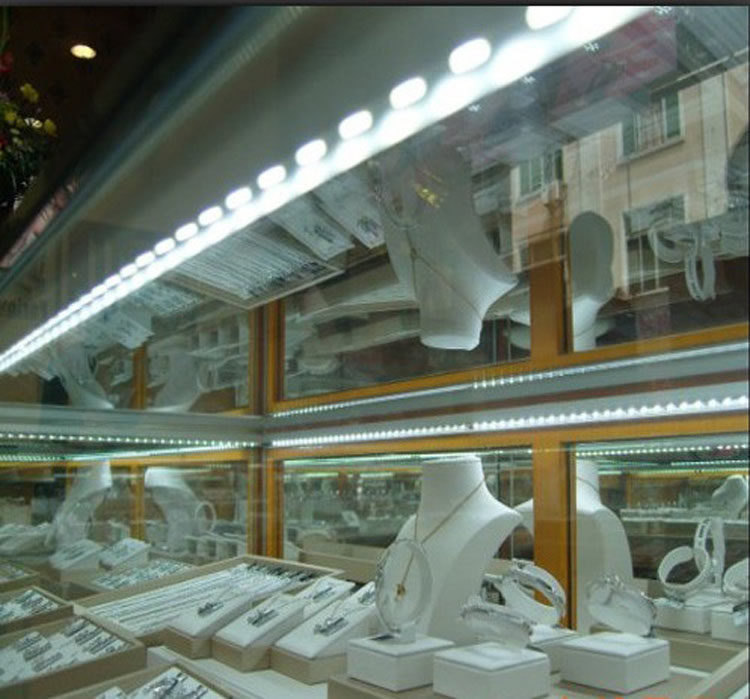

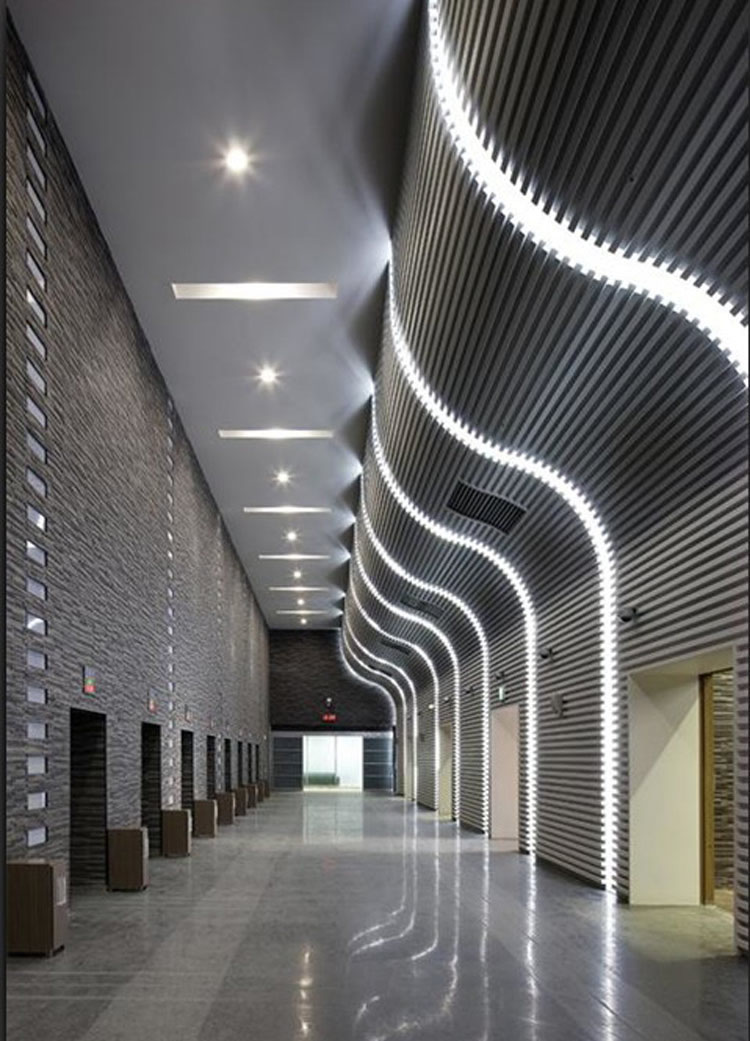

7.Application:
